Name: Flat Bed Cnc Lathe TCK40 Gang Type Tool Holder And Flying Cutting Head Hydraulic Chuck
Brand: Luyoung
Price: 12000 USD

Brand Name : Luyoung

Model Number : TCK40

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD12000-USD30000

Payment Terms : L/C, T/T

Supply Ability : 100sets

Delivery Time : 45 working days

Packaging Details : non-fumigation wooden box

Bed : slant bed machine

Chuck : 6 inch

Tool holder : gang type tool holder

Contact Now

Item	parameter	TCK40
Processing range	Max swing over bed Dia.( mm)	Φ450
	Max cutting Dia.( mm)	Φ120
	The distance between two centers( mm)	335
Travel and feed	X axis travel( mm)	900
	Z axis travel( mm)	335
	X axis movement speed( mm/min)	24000
	Z axis movement speed( mm/min)	24000
	Hand wheel( mm)	0.001/0.01/0.1
	X ,Z axis feed speed( mm/min)	0~5000
	X ,Z axis manual feed speed( mm/min)	0~1260
positional accuracy	X axis repeated positioning accuracy	0.005
	X-axis positioning accuracy( mm)	0.01
	Z axis repeated positioning accuracy (mm)	0.006
	Z-axis positioning accuracy(mm)	0.015
Spindle	Spindle speed( rpm)	3500
	Max. spindle torque(N.m)	35
	Spindle nose	A2-6
	Spindle bore Dia( mm)	Φ66
	Hollow oil chuck through hole Dia.(mm)	Φ50
	Chuck	6 ”
Turret	No.of tool holder	/
Main motor	Main motor(kw)	5.5(3500rpm)
Main motor	Main motor torque(N.m)	35
Feed motor	X axis feed motor powr(kw)	1.5
	X-axis feeds motor torque(N.m)	6
	Z axis feed motor powr(kw)	1.5
	Z-axis feeds motor torque(N.m)	6
cooling system	Coolant capacity(L)	200
cooling system	motor type(1HP)(kw)	0.125
Dimensions	LWH( mm)	340020602100
weight	Machine weight(kg)	4200

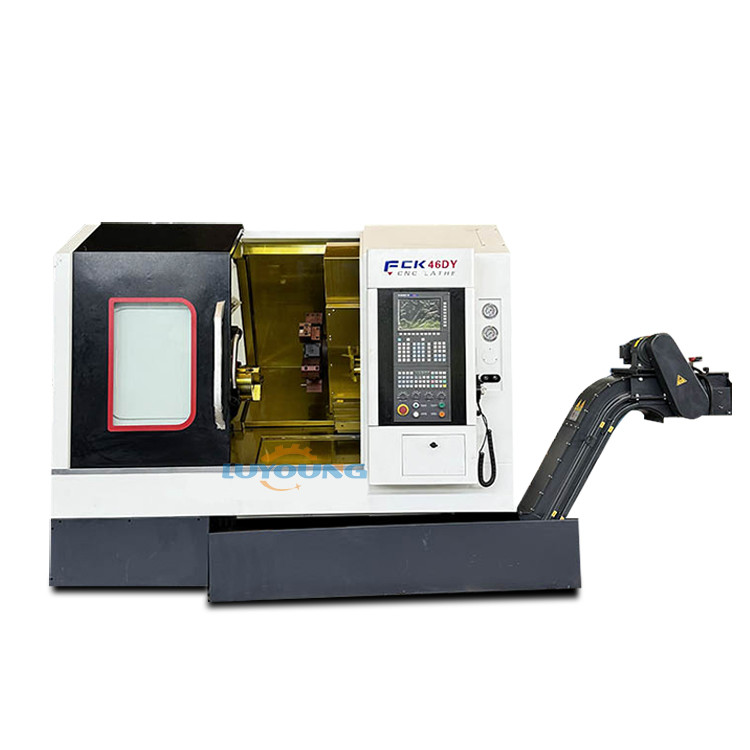

Other models slant bed machine；

Flat Bed Cnc Lathe TCK40 Gang Type Tool Holder And Flying Cutting Head Hydraulic Chuck

: The two guide rails of the inclined bed CNC lathe intersect with the ground plane to form an inclined surface, with angles of 30°, 45°, 60°, and 75°4. The bed of the inclined bed CNC lathe is a right-angled triangle.
: The cross-sectional area of the inclined bed is larger than that of a flat bed with the same specifications, providing greater resistance to bending and torsion.
: Inclined bed machines make effective use of space and greatly reduce the floor space occupied by the machine.
: The inclined guide rails facilitate the concentration of chips on the chip conveyor, which is convenient for automatic chip removal.
: The spindle unit speed can reach 4500 rpm.
